First-Party Plugins¶

First-party plugins are official components integrated directly into the VSView source code and distributed with each release.

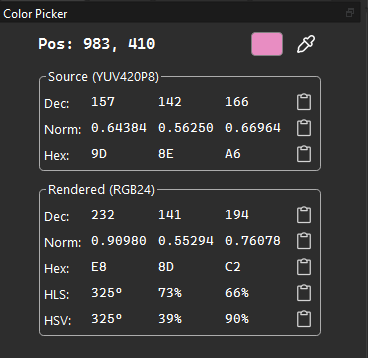

Color Picker¶

The Color Picker dock tool allows you to inspect precise pixel values at any position in the frame.

How to Use¶

1. Click the Pipette icon in the toolbar to activate the tool.
2. Hover the mouse over the viewport to see real-time pixel data.
3. Right-click or click the tool icon again to deactivate.

Data Provided¶

The inspector provides two sets of values for the selected pixel:

• Rendered Values: The RGB values as they appear after the internal VSView rendering pipeline.
• Source Values: The raw, underlying sample values directly from the VapourSynth clip.

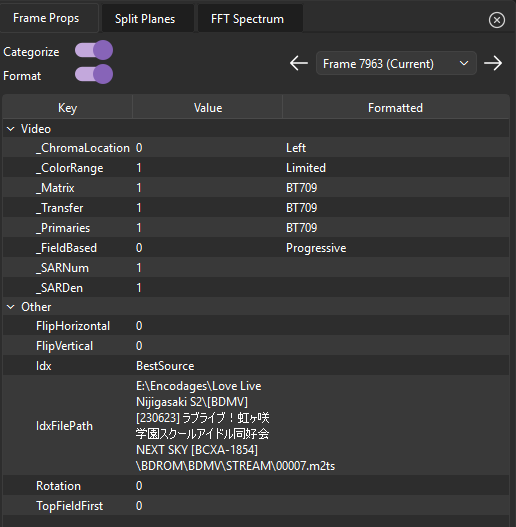

Frame Properties¶

The Frame Properties panel displays metadata attached to each frame by VapourSynth filters.

Features¶

• Categorization: Properties are grouped into logical categories (e.g., Video, Metrics, Field).
• Formatters: Values are automatically formatted into readable strings based on their type.
• Context Menu: Right-click a property to display a context menu with options to copy the property value or its key.

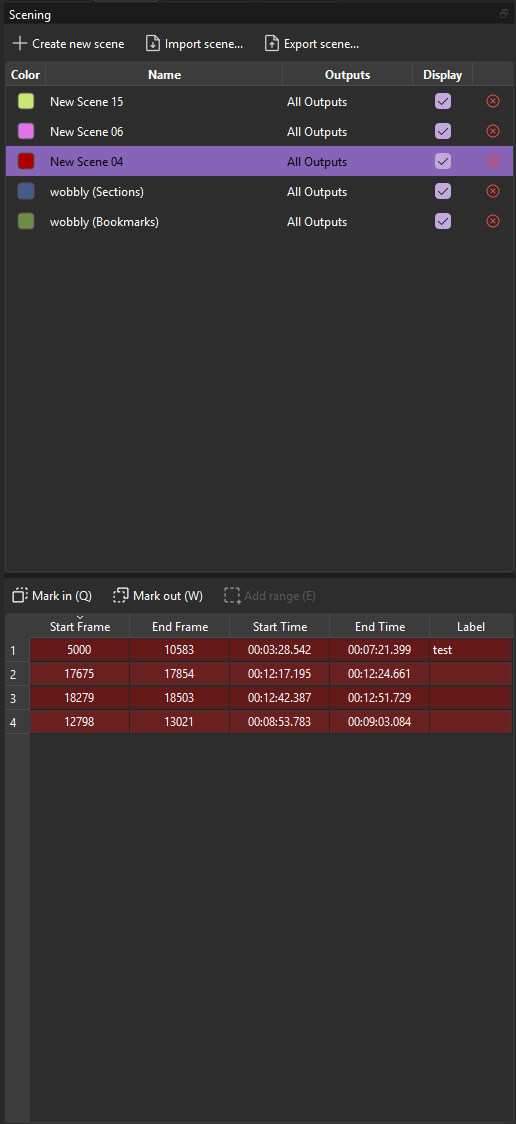

Scening¶

The Scening dock tool is designed for creating, managing, and exporting scene ranges.

Scene Management¶

The upper panel manages scenes, which are named containers for ranges. Each scene has a customizable color, can be bound to specific outputs, and has a display toggle to control timeline visibility.

• Create new scene adds a new scene.
• Delete removes a scene.
• The Color swatch changes the scene's color.
• The Outputs column restricts a scene to specific video outputs.
• The Display checkbox toggles the scene's visibility on the timeline.

Adding Ranges¶

The lower panel shows the ranges belonging to the selected scene. You can either build ranges using the Mark in / Mark out workflow, or add the current frame directly as a single-frame range.

Use the standard range workflow when you want a span:

1. Navigate to the desired start frame on the timeline.
2. Press Q (or click Mark in) to set the start point.
3. Navigate to the desired end frame.
4. Press W (or click Mark out) to set the end point.
5. Press E (or click Add range) to commit the range to the selected scene.

Use the single-frame workflow when the range should start and end on the same frame:

1. Navigate to the desired frame on the timeline.
2. Press R (or click Add frame) to add that frame as a range to the selected scene.

Each range displays its Start Frame, End Frame, Start Time, End Time, and an optional Label.

Keyboard Shortcuts¶

Each shortcut is customizable in the Settings menu.

Timeline Integration¶

When a scene's Display checkbox is enabled, its ranges are drawn as colored notches directly on the timeline. Hovering over a notch displays a tooltip with the range label (if set). Scenes can be filtered per output, so only relevant ranges are shown for the active video tab.

Import & Export¶

The toolbar provides Import scene... and Export scene... buttons for working with external files.

Supported Import Formats¶

Supported Export Formats¶

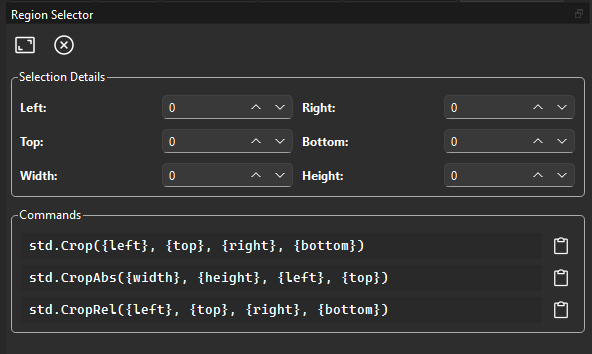

Region Selector¶

The Region Selector tool defines rectangular regions within the frame, primarily for generating VapourSynth crop parameters.

Features¶

• Boundary Adjustment: Direct control over Left, Right, Top, Bottom, Width, and Height via spin boxes.
• Snap to Modulo: Selection boundaries snap to the mod value defined in settings (e.g., mod 2, mod 4).
• Code Generation: Generates VapourSynth snippets (e.g., std.Crop) based on the active selection.
• Interactive Overlay: Resizable and movable region overlay with corner/edge handles.

How to Use¶

1. Click the Frame Corners icon or press C.
2. Left-click and drag in the viewport to define the initial region.
3. Adjust boundaries using the handles or spin boxes.
4. Click the Clipboard icon to copy the generated code.
5. Click the X-Circle icon or press C to deactivate.

Keyboard Shortcuts¶

Shortcuts, mod and code snippets are configurable in the Settings menu.
