Field-Based Video

When working with DVDs and other older video sources, you'll often encounter what's known as "field-based" video. This guide will explain what field-based video is.

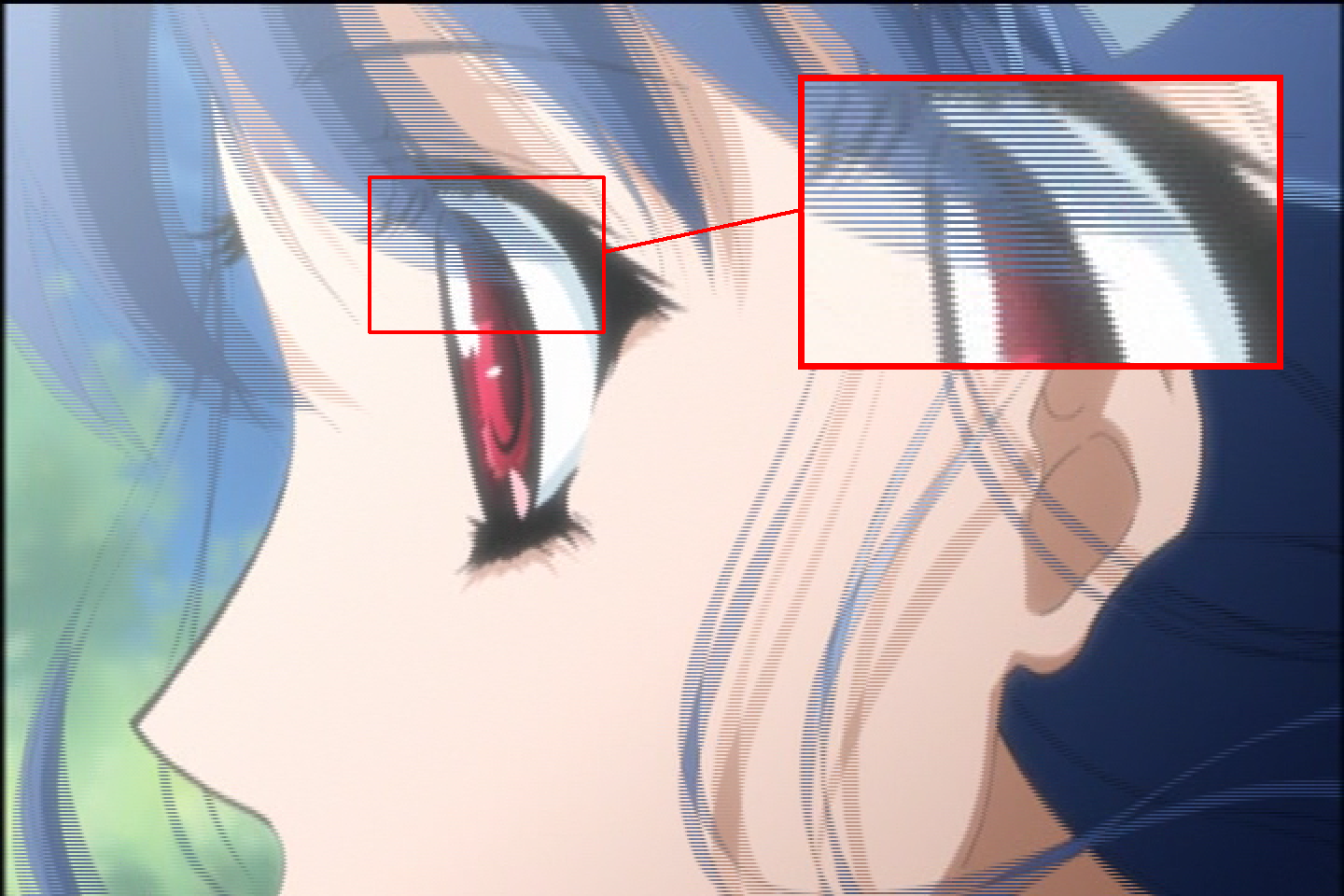

Combed frame

NTSC vs. PAL

While both NTSC and PAL use field-based video, this guide focuses exclusively on NTSC. PAL introduces additional complexities that make it significantly harder to understand, process, and restore video to its original state.

What is a video?

At its most basic level, a video is a series of pictures (called frames) displayed in sequence at specific intervals. The rate at which these frames are displayed is known as the framerate, typically measured in frames per second (fps).

When you play a video on your computer, you're usually seeing what's called "frame-based" or "progressive" footage. Each frame is a complete picture on its own, with no special storage or display requirements.

However, not all footage works this way. Some video, particularly from older sources or certain broadcast formats, is stored in what's called a "field-based" format.

Fields and Frames

There are several key differences between these two storage formats.

Frame-Based (Progressive) video

Frame-based footage, also known as progressive video, is straightforward:

• Each frame is a complete, self-contained picture
• All rows of pixels are captured at the same moment in time
• The frames are displayed sequentially, one after another

Here's a visualization of sequential frames in progressive video:

A

B

C

D

Field-Based (Interlaced) video

Field-based video works differently:

• Each frame is divided into two fields
• One field contains the even-numbered rows (top field), the other contains the odd-numbered rows (bottom field)
• Each field can capture a different moment in time

Field Order

Field orders can vary depending on how the footage was shot. The two common field orders are:

• Top Field First (TFF): The top field comes from an earlier point in time than the bottom field
• Bottom Field First (BFF): The bottom field comes from an earlier point in time than the top field

Using the wrong field order will result in jerky motion and visual artifacts.

This guide will explain concepts assuming Top Field First.

This format was originally developed for CRT televisions, which could only draw half the lines of a frame at once. By alternating between even and odd lines, they could display video at a higher perceived framerate while using less bandwidth.

Types of Field-Based footage

Know what you're working with

It is vitally important to recognize which type of field-based video you're working with before taking any action, as each requires a completely different approach. This information can NOT be determined from MediaInfo alone. You must visually inspect multiple consecutive frames manually to observe how the fields interact over time to identify whether the video is interlaced or telecined.

There are two main types of field-based footage:

1. Interlaced Footage: Where each field represents a complete picture at a different point in time
2. Telecined Footage: Where fields are used to convert between different framerates (like 23.976 fps to 29.97 fps)

Interlaced footage

In interlaced footage, each field captures a unique moment in time. Unlike progressive video where each frame represents a single instant, interlaced video interleaves two different temporal samples into a single frame:

1. The top field contains even-numbered rows from one moment
2. The bottom field contains odd-numbered rows from the next moment
3. Each field has half the vertical resolution of a full frame

A

B

C

D

E

F

G

H

I

J

For any given frame:

\[ \text{Frame}_n = \begin{cases} \text{Top Field} &= \text{Time}_n \\ \text{Bottom Field} &= \text{Time}_{n+1} \end{cases} \]

When displayed on a CRT monitor, this temporal interleaving appeared smooth because CRTs draw the image line-by-line, from top to bottom. Each field would be displayed sequentially, with the phosphors from the previous field naturally fading before the next field was drawn. Modern displays work entirely differently, and will simply render full frames at a time, making the interlacing visible.

Telecined footage

Telecined footage is more complex. It's a process used to convert film (typically 23.976 fps) to broadcast formats (typically 29.97 fps) by duplicating and blending fields in a specific pattern.

This conversion is necessary because film (23.976 fps) and broadcast video (29.97 fps) have different framerates, with a ratio of 4:5 frames:

\[ \frac{23.976}{29.97} = \frac{4}{5} \]

The most common pattern is 3:2 pulldown (also called 2:3 pulldown), which converts 23.976 fps film to 29.97 fps video by duplicating and rearranging fields from 4 film frames (8 fields) to create 5 frames for broadcast (10 fields).

A

A

B

B

B

C

C

D

D

D

This creates a repeating pattern of 2-3-2-3 field duplicates, where:

• Frame A is shown for 2 fields
• Frame B is shown for 3 fields
• Frame C is shown for 2 fields
• Frame D is shown for 3 fields

\[ \frac{A^1 - A^2 - B^1 - B^2 - B^1 - C^2 - C^1 - D^2 - D^1 - D^2}{2-3-2-3} \]

The combed frames occur where fields from different source frames are interlaced together (B/C and C/D frames). These hybrid frames contain fields from two different moments in time, creating the "combing" artifact. As this method follows a set pattern, it's reversible. This process is called "inverse telecine" (IVTC).

The key difference between telecined and interlaced footage is that with telecining, the fields originate from progressive film frames, meaning we can reconstruct the original frames by identifying and reversing the telecine pattern. With interlaced footage, the fields were captured at different moments in time, so there is no "original" progressive frame to recover.

Cycles and Pattern Breaking

When working with inverse telecine (IVTC), it's helpful to think about the video in terms of cycles. For telecine specifically (23.976 fps film to 29.97 fps video), each cycle takes 4 film frames and distributes them across 5 video frames, creating a cycle of 10 fields or 5 frames total.

The telecine pattern frequently "breaks" due to video editing practices. Since editing historically occurred after telecining the footage, cuts between scenes and added transitions would disrupt the underlying 2-3-2-3 sequence. The editing process paid no attention to maintaining pattern consistency, leading to broken cycles throughout the video.

These breaks create "orphaned fields": fields that have lost their matching pair from the original film frame. Orphaned fields cannot be properly reconstructed into their source progressive frames, as their matching field no longer exists.

Scene A

A

A

B

B

B

C

Scene Cut Prematurely →

Scene B

A

A

B

B

B

C

C

D

D

D

Looking at Scene A, we can observe how the telecine pattern becomes disrupted at the scene change. The sequence begins normally, following the expected 2-3-2-3 pattern through frames A and B. However, when reaching frame C, only the top field (C1) exists before the scene cuts away. This leaves C1 as an orphaned field with no matching bottom field to complete the progressive frame.

The most common solution is to drop either the next or previous field, depending on the type of orphan. However, this can create a noticeable "hiccup" during playback in scenes with significant motion prior to the scene change.

Variable Framerate Footage

In the early digital era, many studios were still experimenting with digital tooling. This included working directly on 60i video, as well as mixing different framerates together. This commonly manifests in two ways:

1. Mixing film and video sources
2. Adding post-production effects in 60i

A common example in anime is interlaced credits overlaid on telecined animation. When examining individual fields, you may notice certain elements are unique in each field, indicating true interlaced content. However, since the underlying animation is still 23.976 fps content, standard deinterlacing approaches may cause significant damage.

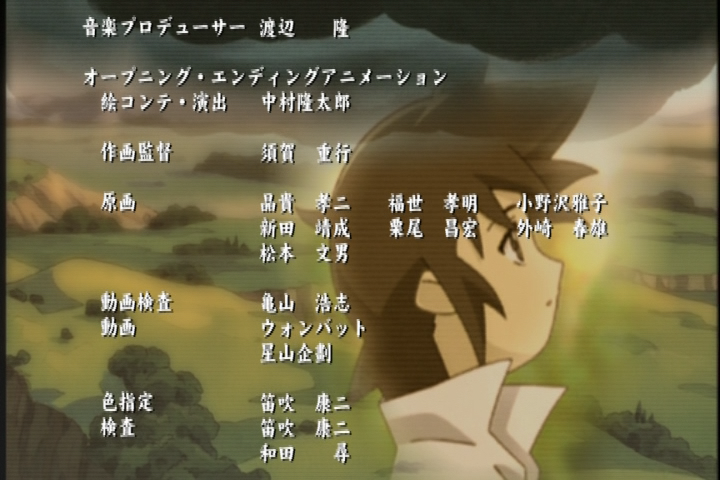

Interlaced credits

In some cases, certain elements may be animated at different framerates natively. These can include:

• Panning shots and zooms
• Background animations
• Video effects and CGI elements
• Text overlays and credits
• Fade transitions

These elements are often produced at 29.97 fps natively, but are broadcast at 60i alongside the telecined footage. This creates segments where the underlying telecine pattern is lost, and special handling is required to properly reconstruct the content.

To properly preserve mixed framerate content, you must output a Variable Framerate (VFR) video or store frame timing information in an external file for muxing. Different segments need different framerates:

• Telecined scenes: 23.976 fps after IVTC
• Native 29.97 fps content: 29.97 fps
• Deinterlaced segments: Usually 59.94 fps

How did people do this in the past?

In the past, hobbyist encoders had limited options for handling mixed framerate content. Common workarounds included:

• Converting everything to 23.976 fps, sacrificing motion smoothness
• Keeping telecined content at 29.97 fps while decimating interlaced segments, resulting in a consistent but suboptimal 29.97 fps output
• Converting all content to a common multiple framerate like 119.88 fps through frame duplication or interpolation

These approaches often resulted in compromised visual quality compared to modern VFR solutions, and as such are generally not recommended.

Some exceptions exist, such as cross-fades or 59.94 fps credits overlaid on lower framerate content, which you may want to pull down to your target framerate. The mix of telecined and interlaced content means that a single deinterlacing approach won't work for the entire video.

Unfixable patterns

In some extreme cases, field-based content may be "unfixable" regardless of the techniques used. This can happen in several scenarios:

• Multiple overlaid telecined patterns on different layers creating conflicting patterns that force deinterlacing
• Zoomed or panned telecined footage where the original fields become unrecoverable
• Footage that has been processed multiple times with different field orders
• Effects applied directly to fields rather than complete frames

In many of these cases, deinterlacing is the only viable solution. However, some content may be damaged beyond what even deinterlacing can fix, leaving you with no way to create clean progressive frames.

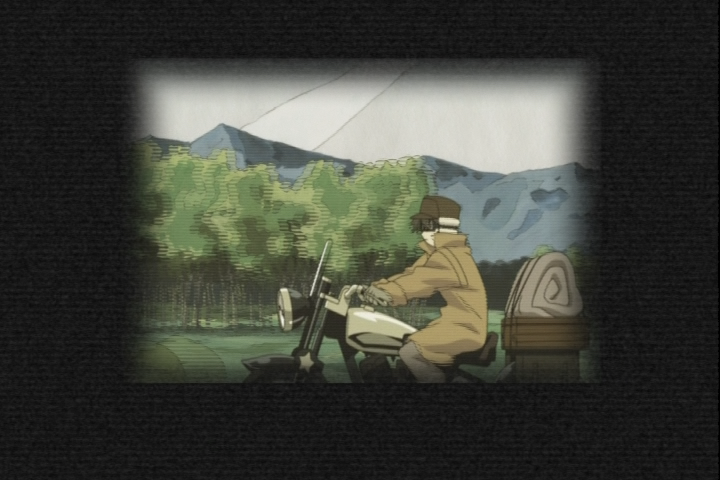

Unrecoverable telecined frame due to zoom

This frame from Kino no Tabi (2003) has been zoomed in while still in its telecined state. The zoom operation has permanently altered the field information, making it impossible to recover the original progressive frame through either inverse telecine or deinterlacing.

Common Misconceptions

Here are some frequent misunderstandings about field-based content that can lead to improper handling:

• "MediaInfo says interlaced, so it must be interlaced"

MediaInfo and similar tools can only detect if content is stored in a field-based format, not whether it's truly interlaced or telecined (or even progressive improperly tagged as interlaced). You must manually inspect the video to determine this.

• "I can just deinterlace everything"

Blindly deinterlacing all field-based content is a common but destructive approach. Deinterlacing telecined content unnecessarily destroys detail and introduces artifacts. Always identify the content type first to choose the appropriate processing method.

• "The whole video must be the same type"

Professional content often mixes different types of field-based content within the same video. This means you may need to handle different segments with different methods. For example, a video might contain both telecined film content and true interlaced video segments, requiring a hybrid approach to properly process the entire file.

Filtering

Now that you understand the different types of field-based content, the following guides will walk you through the appropriate filtering techniques for each scenario:

• Inverse Telecine with Wobbly
